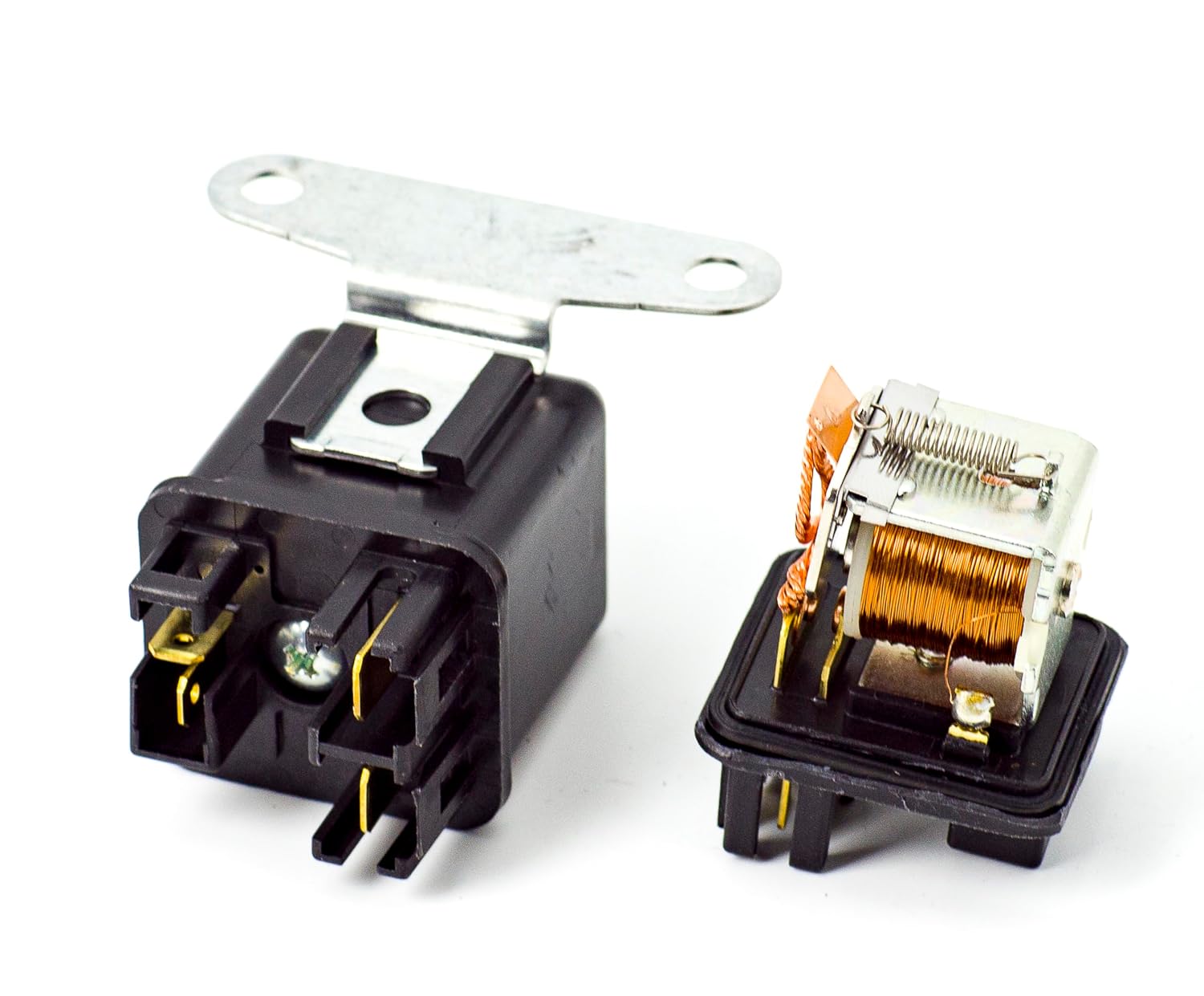

Glow Plug Safe Relay 12V 119650-77911 Compatible with Yanmar Engine 4TNV94,Direct Fit Replacement

The 119650-77911 is a glow plug safety relay specifically designed for Yanmar diesel engines. Whether you need to replace the glow plug relay on a Yanmar 4TNV94 excavator or equip a compact tractor with a brand-new safety relay, this 12V unit delivers reliable cold-starting performance. The glow plug safety relay is a critical component within the Yanmar engine's starting system. It is responsible for controlling the power supply delivered to the glow plugs. When you turn the ignition key to the pre-heat position, the relay activates, channeling battery voltage to the glow plugs and initiating the heating process. The pre-heating cycle continues for a preset duration, signaled by an indicator light on the dashboard that illuminates once the process is complete. You may then proceed to start the engine. This relay ensures that the glow plugs receive the correct voltage for the precise amount of time required. This glow plug safety relay adheres strictly to original specifications: it features a rated voltage of 12V, precise mounting dimensions, and electrical characteristics—including coil resistance, current consumption, and switching capacity—that match the original equipment. Installation requires no modifications; simply remove the old relay and plug this replacement unit directly into place. This relay is engineered specifically for the Yanmar 4TNV94 diesel engine. The 4TNV94 is a four-cylinder diesel engine with a displacement of 0.94 liters per cylinder. It is widely utilized in compact excavators, small track loaders, compact tractors, generator sets, and various industrial machinery. Engines of this type are renowned for their durability and fuel efficiency. For cold-starting purposes, the proper functioning of the glow plugs is absolutely essential. As the 4TNV94 is a direct-injection engine, it relies more heavily on glow plug pre-heating—particularly in cold weather conditions—compared to indirect-injection engines. The glow plug safety relay ensures that the glow plugs undergo sufficient and proper pre-heating, thereby guaranteeing reliable cold-starting performance for the engine. The fundamental principle behind starting a diesel engine involves compressing air to raise its temperature, followed by injecting fuel into this superheated air to ignite it. When the engine is cold, the air temperature within the cylinders is insufficient to ignite the fuel; at this stage, the glow plugs heat the combustion chamber, raising the internal temperature to a level sufficient to ignite the fuel. If the glow plugs fail to function correctly, the engine may crank but fail to start. Even if it does manage to start, it may be accompanied by excessive white smoke. Furthermore, until the engine warms up, its operation may be rough and unstable. The safety relay is designed to protect the glow plug's electrical circuit. Glow plugs draw extremely high current during operation—typically ranging from 10 to 20 amperes per plug. For a four-cylinder engine, this translates to a total current load of 40 to 80 amperes. Should the relay fail and become stuck in the "closed" position, the glow plugs will remain continuously energized. This leads to overheating and the eventual burnout of the glow plugs; the connecting wiring harness may even melt due to the excessive heat, while the battery's charge will be completely drained. This safety relay is specifically engineered to prevent such failures, featuring a reinforced internal structure capable of withstanding the immense current loads generated by the glow plug system. The following signs indicate that your glow plug safety relay may require replacement: the engine cranks but fails to start when cold; the engine is difficult to start and emits excessive white smoke; the glow plug indicator light fails to illuminate or remains lit for an unusually long period; glow plugs burn out frequently; or the relay emits an audible "click" sound (indicating engagement), yet the glow plugs receive no power. If you observe any of these symptoms, it is imperative that you replace the relay promptly. The installation process is very straightforward. First, locate the glow plug relay within the fuse and relay box of your Yanmar engine. Simply pull the old relay straight upward to remove it. Verify that the new relay—Model 119650-77911—matches the old unit. Finally, insert the new relay into the original socket position. Press down firmly until you hear a "click" or the relay snaps completely into place. Finally, start the engine to verify that the glow plugs have resumed normal operation.

• Direct Fit:This glow plug safety relay serves as a direct replacement for part number 119650-77911. It can be installed and used without requiring any modifications.
• Engine-Specific Design:Tailored specifically for the Yanmar 4TNV94 diesel engine, this component is widely utilized in excavators, compact tractors, generator sets, and various types of industrial equipment. It ensures the reliable operation of the glow plugs during cold-weather starting.
• Enhanced Performance:This glow plug safety relay manages the pre-heating cycle prior to engine startup. It ensures that the glow plugs reach their optimal operating temperature, thereby guaranteeing reliable engine starting in cold weather conditions. Additionally, it helps to minimize engine wear and reduce exhaust emissions.
• Unique Design:Featuring a built-in, comprehensive safety protection mechanism, this unit provides all-around protection for the glow plug electrical circuit. It effectively prevents damage to the glow plugs, wiring harness, and battery caused by overheating.
• Easy Installation:The installation process is simple and straightforward, requiring only a direct swap. Simply remove the old relay and plug this 119650-77911 relay directly into the original socket location. No wiring modifications or special tools are required.
